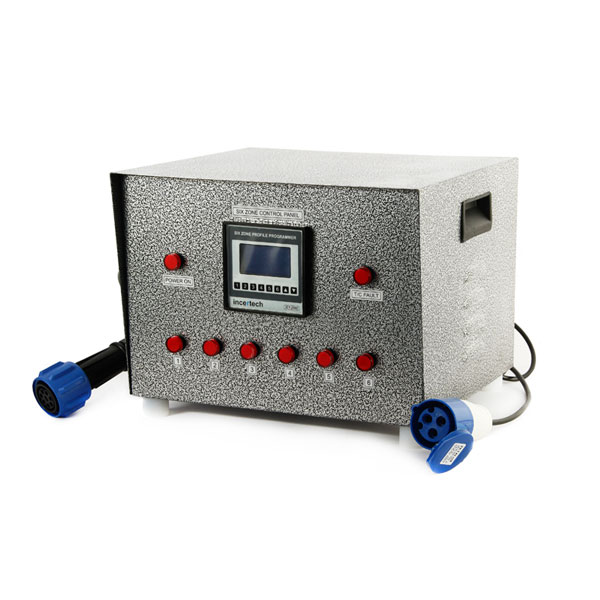

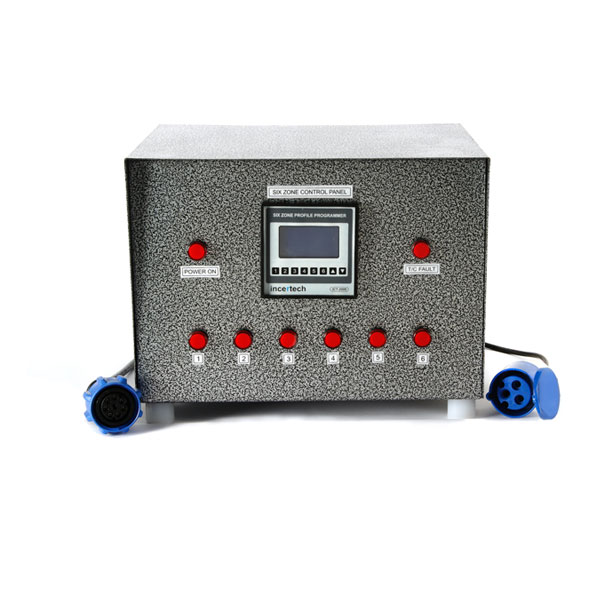

PWHT Automatic Control Panel / Programmer

Model ITC- 2000

Description Six input/output and Six independent profile of 4 steps Ramp / Soak Programmable PID/On-Off Profile Programmer

Size w x h x d (mm.) 96 x 96 x 160

Features:

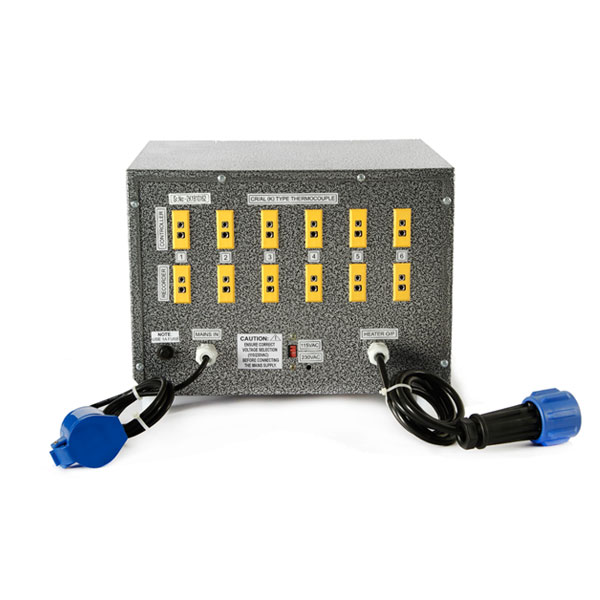

• Accepts six K type (Cr/Al) of thermocouple.
• Blue colour graphical LCD screen for clear visibility.
• Six independent control Relay.
• Servo start from the current process temperature.
• 1 to 4 programmable ramp/soak steps with rate programming facility

Applications:

• Furnace / oven controlPWHT and SR heat treatment cycle

Supply (90-250) VAC, 50/60Hz

Size 48w X 96h X 110d mm.

Panel Cutout 45X92mm. +/-0.5mm.

Enclosure ABS plastic with polycarbonate front graphic.

Size 96wX96hX170d mm.

Panel Cutout 92X92mm. +/-0.5mm.

Enclosure MS Powder coated with polycarbonate front graphic.
